Custom Machining

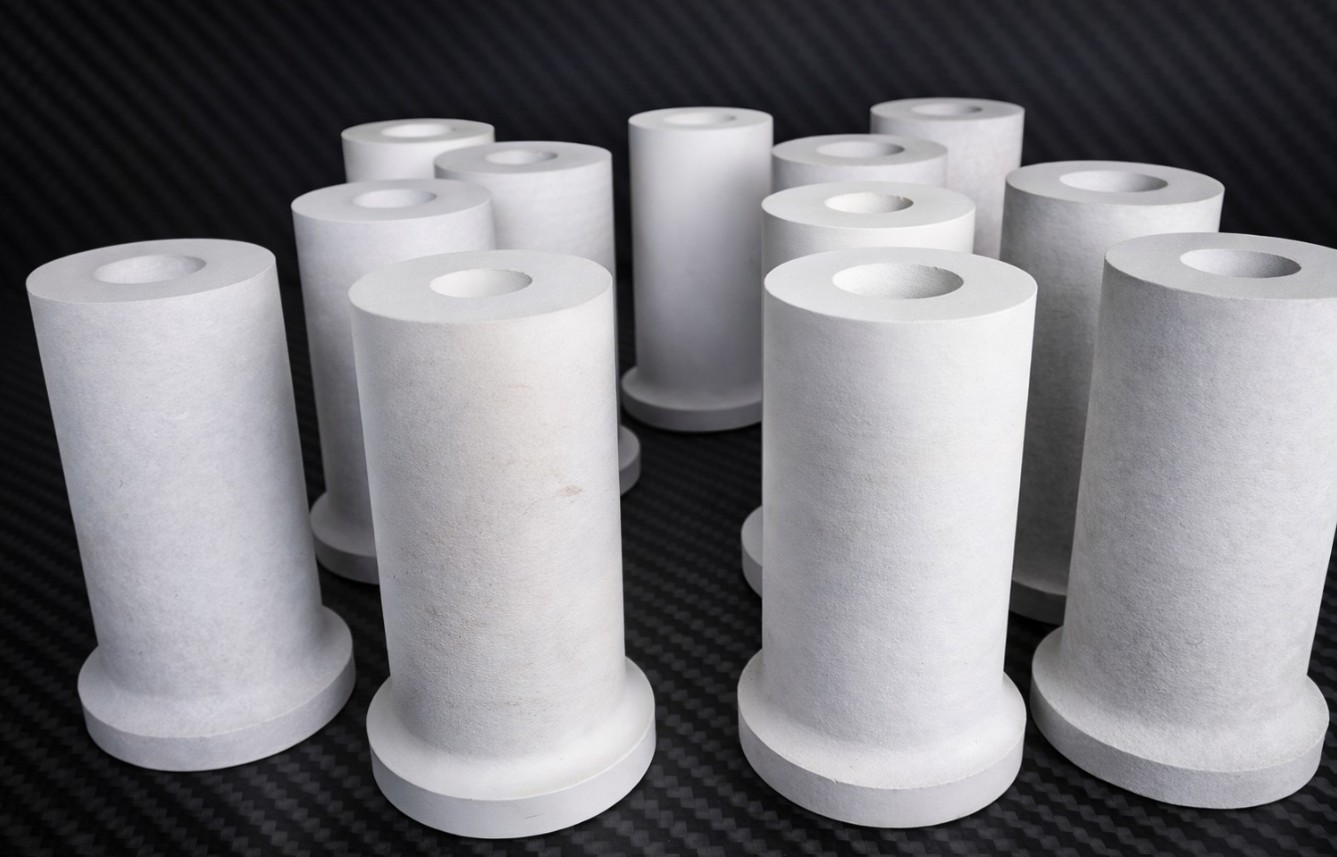

When a flat board cannot solve your insulation challenge, we CNC-machine high density calcium silicate into precision shaped parts — discs, rings, cylinders, tubes, pipe sections and complex profiles — from 800–1200 kg/m³ grades, rated to 1100°C, to your exact drawings.
Capabilities
Our multi-axis CNC machining covers virtually every geometry calcium silicate allows.
Furnace peepholes, thermocouple plates, ladle covers, burner blocks, sealing discs.
Pipe insulation rings, furnace port linings, burner surrounds, sealing rings.
Thermocouple protection tubes, riser tubes, pouring cups, furnace furniture.

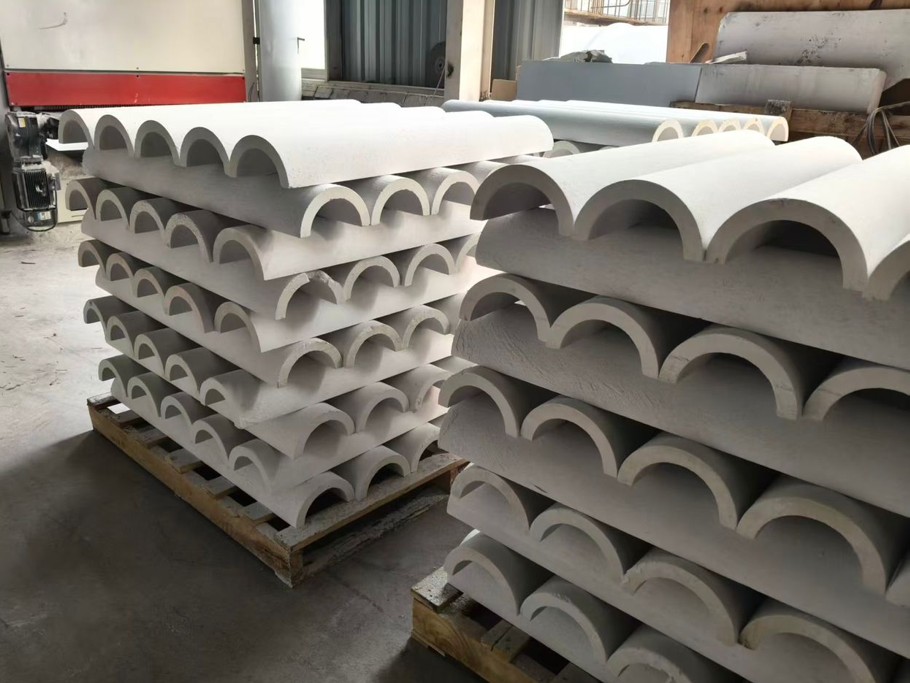

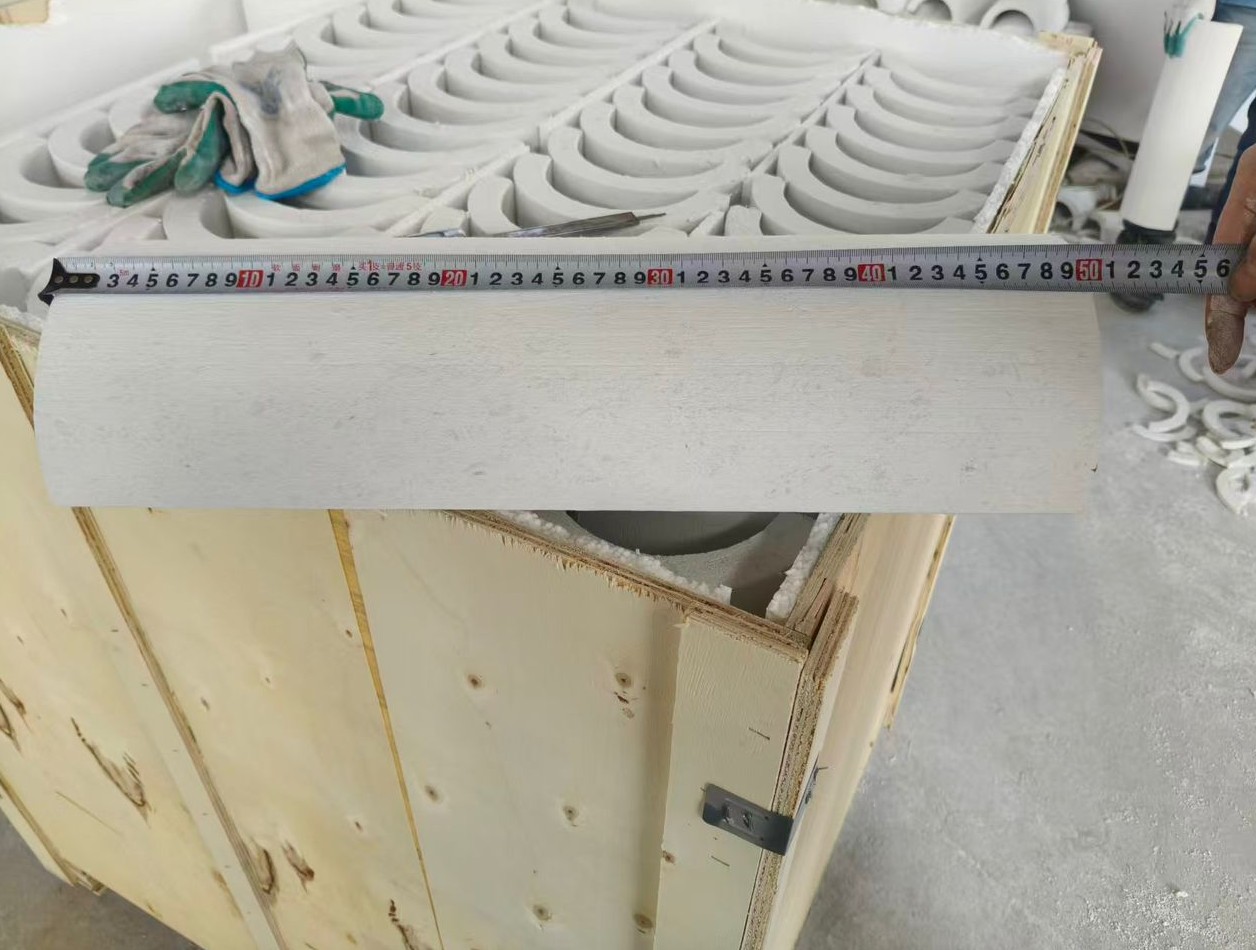

Insulated pipe sections rated to 1000°C — half-shells and segments to spec.
Launder sections with flow channels, gasket grooves, distribution plates.
Conical transitions, contoured linings and parts combining bores, holes & chamfers.
Featured

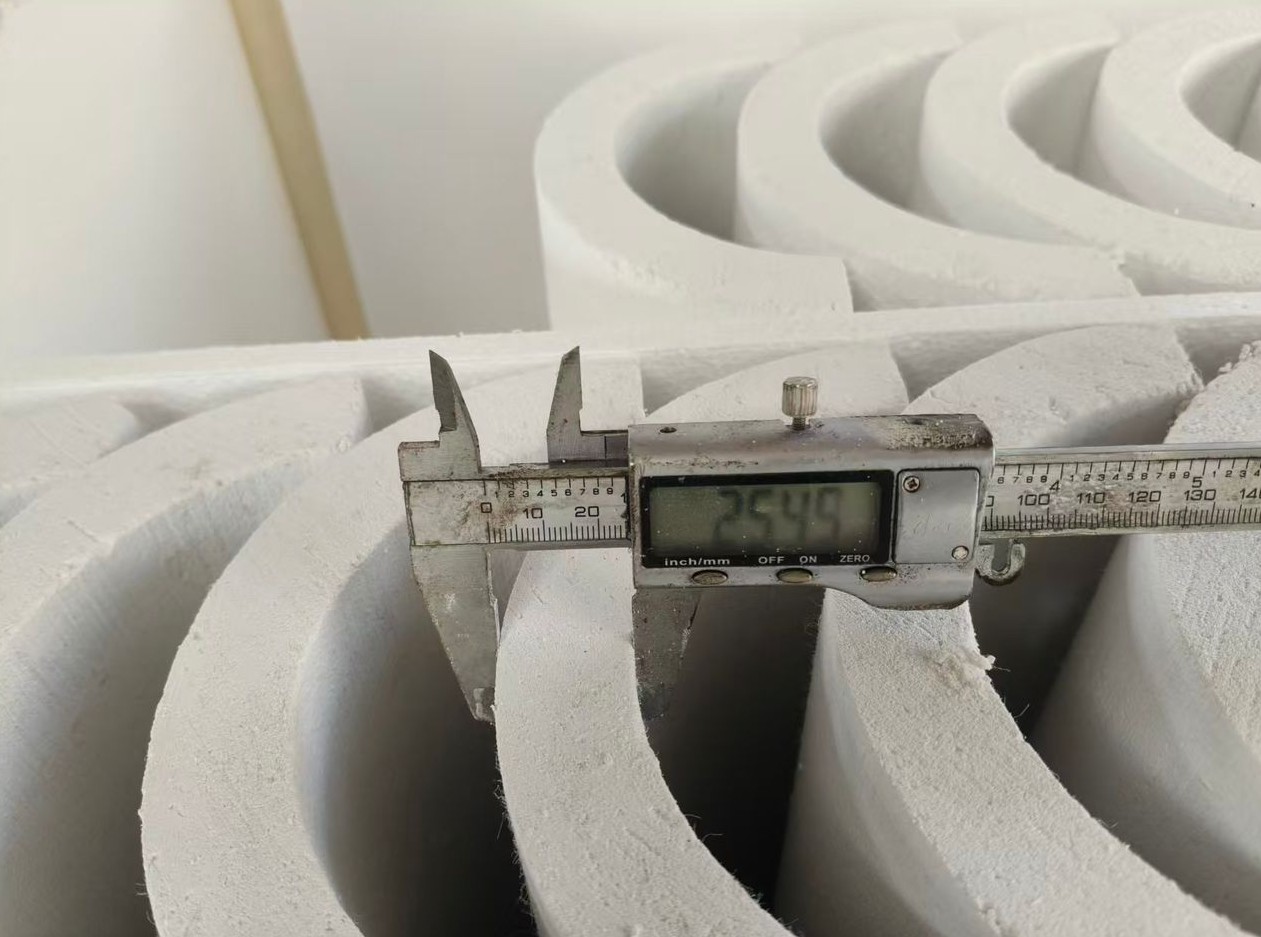

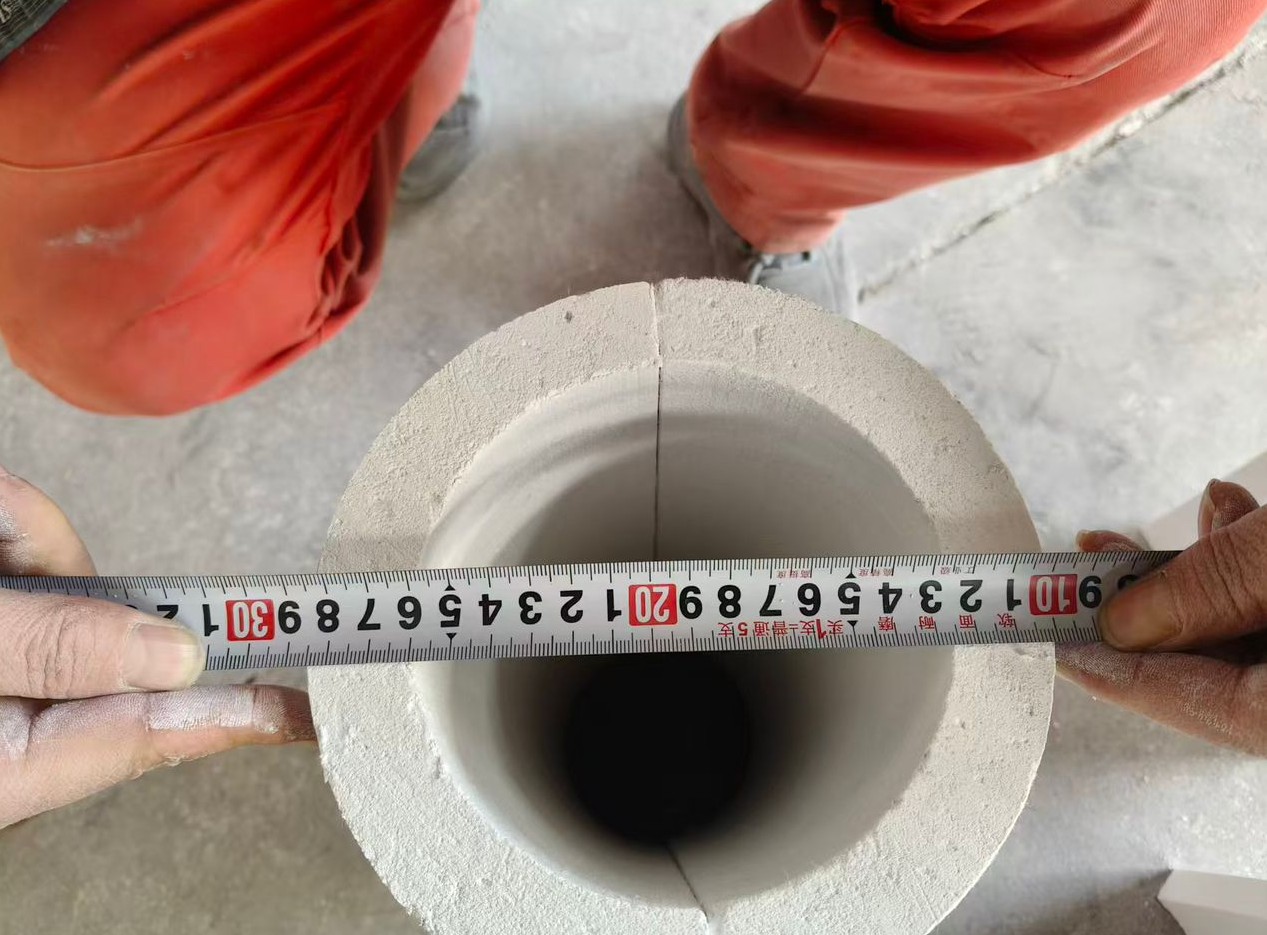

Precision-machined calcium silicate pipe sections for high-temperature pipe insulation, rated to 1000°C, produced to inner/outer diameter and wall-thickness specification.
Why Factory-Machined
CNC holds ±0.5mm across hundreds of pieces; field cutting is ±2–5mm with rough edges.
Factory nesting cuts the 30–40% scrap rate of cutting circles from boards on site.
Smooth machined edges keep full strength — no micro-cracks that fail under thermal cycling.
Order 500 identical parts and every piece arrives the same size and finish.
Pre-machined parts drop in and fit first time — no trimming or re-cutting on site.
A1 non-combustible, non-asbestos material across all machined grades.
Material Grades
Tough — best for frequent handling & thin-walled parts.
View Grade → 850kg/m³Most versatile, all-round machinability & cost.
View Grade → 980kg/m³For rapid, repeated temperature cycling.
View Grade → 1020kg/m³Non-wetting — for casting molds & launder parts.
View Grade → 1200kg/m³Maximum mechanical strength under load.
View Grade →Machining Capabilities
| Shapes | Discs · Rings · Cylinders · Tubes · Pipe Sections · Grooved · Tapered · Multi-feature |
|---|---|
| Diameter / Size | 50 – 1000 mm |
| Thickness | 10 – 100 mm |
| Tolerance | ±0.5 mm |
| Density Grades | 800 – 1200 kg/m³ |
| Max Service Temp | Up to 1100°C (2012°F) |
| Drawing Formats | Sketch · DXF · DWG · STEP |
| Minimum Order | 50 – 100 pcs (lower for simple shapes) |
| Lead Time | 15 – 25 days |
| Packaging | Individually wrapped · export crating |
All parts are non-asbestos and A1 non-combustible. Dimensional inspection reports and Certificate of Conformance available on request.
How to Order
A sketch with dimensions is enough. CAD files (DXF/DWG/STEP) welcome for complex parts.
We confirm the best grade and send piece price, tooling (if any), lead time and MOQ.
For new shapes we typically produce 2–5 samples for your evaluation first.
15–25 day lead time, shipped with professional export packaging.
Send your drawing and our engineers will recommend the grade and return a factory-direct price.
